SonikSphere NEO: [Gen-2] 5.8GHz Wireless Guitar & Bass System
Checkout with total confidence.
Want cable-like 5.8GHz wireless with longer battery life and better control for hotter instruments?
SonikSphere NEO is CFG’s second-generation 5.8GHz wireless guitar and bass system, built for players who want clean 24-bit/48kHz audio, under 2.5ms latency, over 10 hours of battery life, and a built-in -10dB PAD for active, piezo, and high-output instruments.
It keeps the cable-like SonikSphere sound, then adds 6 color-coded channels, visual battery bars on both units, and black-transmitter/silver-receiver identification for quicker setup on stage. Plug the transmitter into your instrument, plug the receiver into your amp or pedalboard, choose your channel, and play.
Why choose SonikSphere NEO?
- 5.8GHz wireless: Runs outside the crowded 2.4GHz space used by Wi-Fi, Bluetooth, and plenty of everyday gear.
- Cable-like sound: 24-bit/48kHz digital audio with a wide 10Hz-22kHz frequency response.
- Built-in -10dB PAD: Helps prevent clipping from active, piezo, and high-output instruments.
- Fast playing feel: Under 2.5ms latency keeps the response tight and natural.
- Over 10 hours per charge: Built for long rehearsals, gigs, and practice sessions.
- Clear stage control: 6 color-coded channels, visual battery bars on both units, and easy black TX/silver RX identification.
Who should choose SonikSphere NEO?
SonikSphere NEO is a strong fit for guitarists and bassists who want cable-like 5.8GHz wireless sound, longer battery life, and better control over active, piezo, or high-output instruments.
It is made for gigs, jam sessions, rehearsals, worship stages, clubs, and other setups where cables get in the way, while also working well for home practice and recording. It gives you a simple instrument-to-amp or instrument-to-pedalboard connection without using the crowded 2.4GHz lane.
- Electric guitar and bass players: Built for standard 1/4-inch instrument outputs and inputs.
- Active and piezo instruments: The built-in -10dB PAD helps lower hotter input signals before they overload the wireless input.
- Long rehearsals and gigs: Over 10 hours of battery life gives you more breathing room between charges.
- Players who prefer 5.8GHz: Runs outside the crowded 2.4GHz space commonly used by Wi-Fi, Bluetooth, and other everyday gear.
- Multi-player setups: 6 color-coded channels help keep multiple NEO systems organized in the same room.
- Dark or busy stages: The black transmitter and silver receiver are easy to tell apart at a glance.
How does SonikSphere NEO sound compared to a guitar cable?
SonikSphere NEO is built to preserve the natural character of your guitar or bass, with a frequency response designed to stay remarkably close to a traditional instrument cable.
In plain English, you keep the familiar feel and tone of your instrument while removing the cable from the equation.

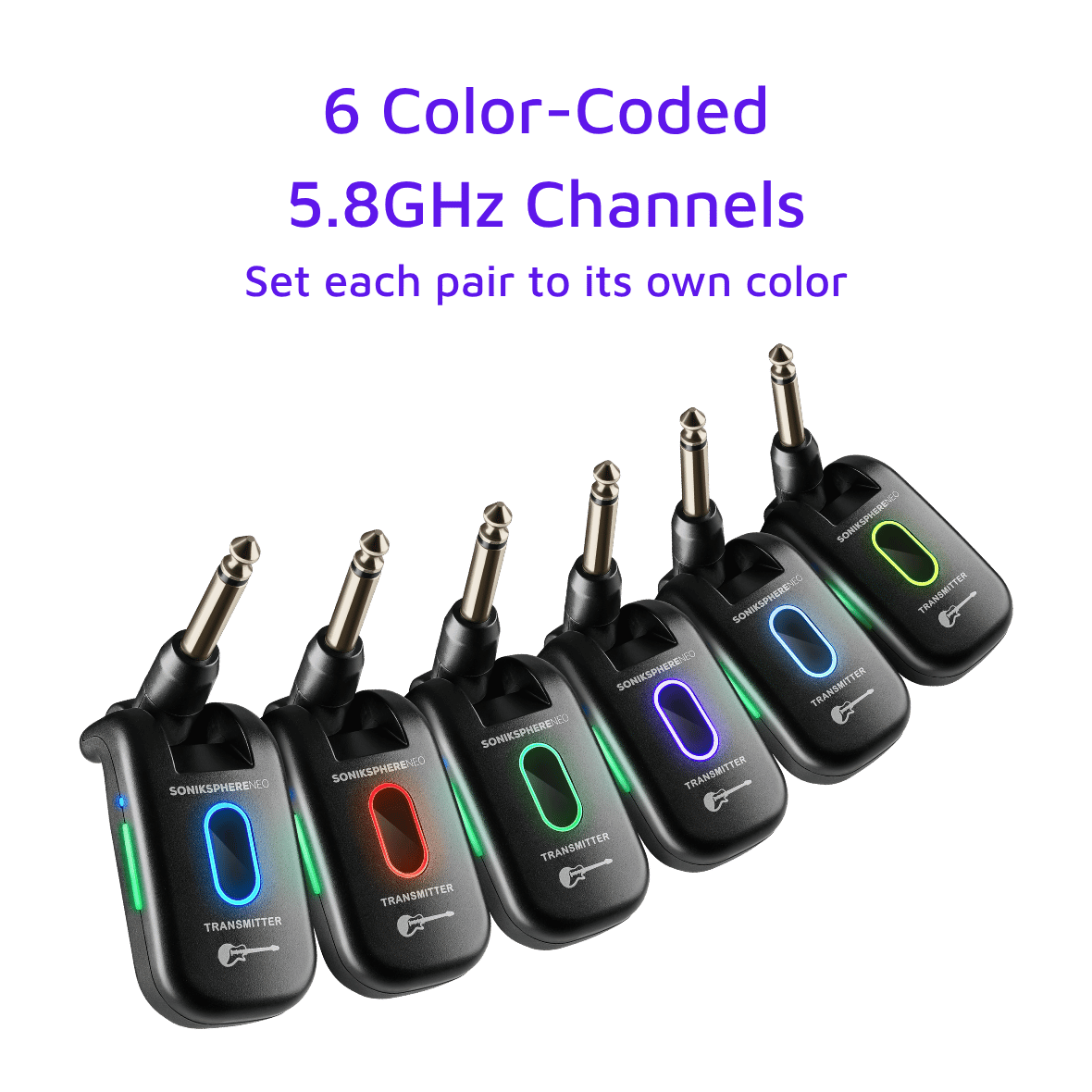

How do SonikSphere NEO’s channels and -10dB PAD work?
SonikSphere NEO keeps the controls simple: choose one of 6 color-coded channels on the transmitter, and use the -10dB PAD only when an active, piezo, or high-output instrument is hitting the wireless input too hard.
The receiver follows the transmitter’s channel color after pairing. Battery bars on both units show how much charge remains, while the PAD indicator light confirms when the input level has been reduced.
How do I switch wireless channels?
Use the Action Oval button on the transmitter to cycle through the 6 channel colors: red, green, blue, yellow, purple, and cyan.
The receiver follows the transmitter’s selected color after the pair is connected. When using multiple NEO systems in the same room, set each pair to a different channel color.
When should I turn on the -10dB PAD?
Turn on the -10dB PAD if an active, piezo, or high-output instrument sounds overloaded, harsh, or digitally distorted through the wireless system.
The PAD lowers the transmitter’s input level by 10dB before the signal is processed. It is not a tone control and it does not boost quiet instruments.
- Start with the PAD off: This is the normal setting for most passive guitars and basses.
- Turn the PAD on if the signal clips: This may help with active pickups, piezo systems, and other hotter outputs.
- Check the PAD indicator: The light confirms when the -10dB setting is active.
Need help setting up SonikSphere NEO?
These quick tutorials show how to switch channels, re-pair the transmitter and receiver, and use the -10dB PAD when your instrument’s signal is hitting too hard.
How to switch channels
Use this when you want to move your NEO system to another color-coded channel during setup or troubleshooting.
How to re-pair SonikSphere NEO
Use this if the transmitter and receiver are not connecting properly, or if you need to pair the system again.
How and when to use the -10dB PAD
See how to turn the PAD on and when it may help with active, piezo, or high-output instruments that sound overloaded.
What are the SonikSphere NEO technical specifications?
Wireless & Audio
- Wireless band: 5.725GHz-5.825GHz
- 5.8GHz ISM band
- Audio quality: 24-bit/48kHz digital audio
- Frequency response: 10Hz-22kHz, ±1dB

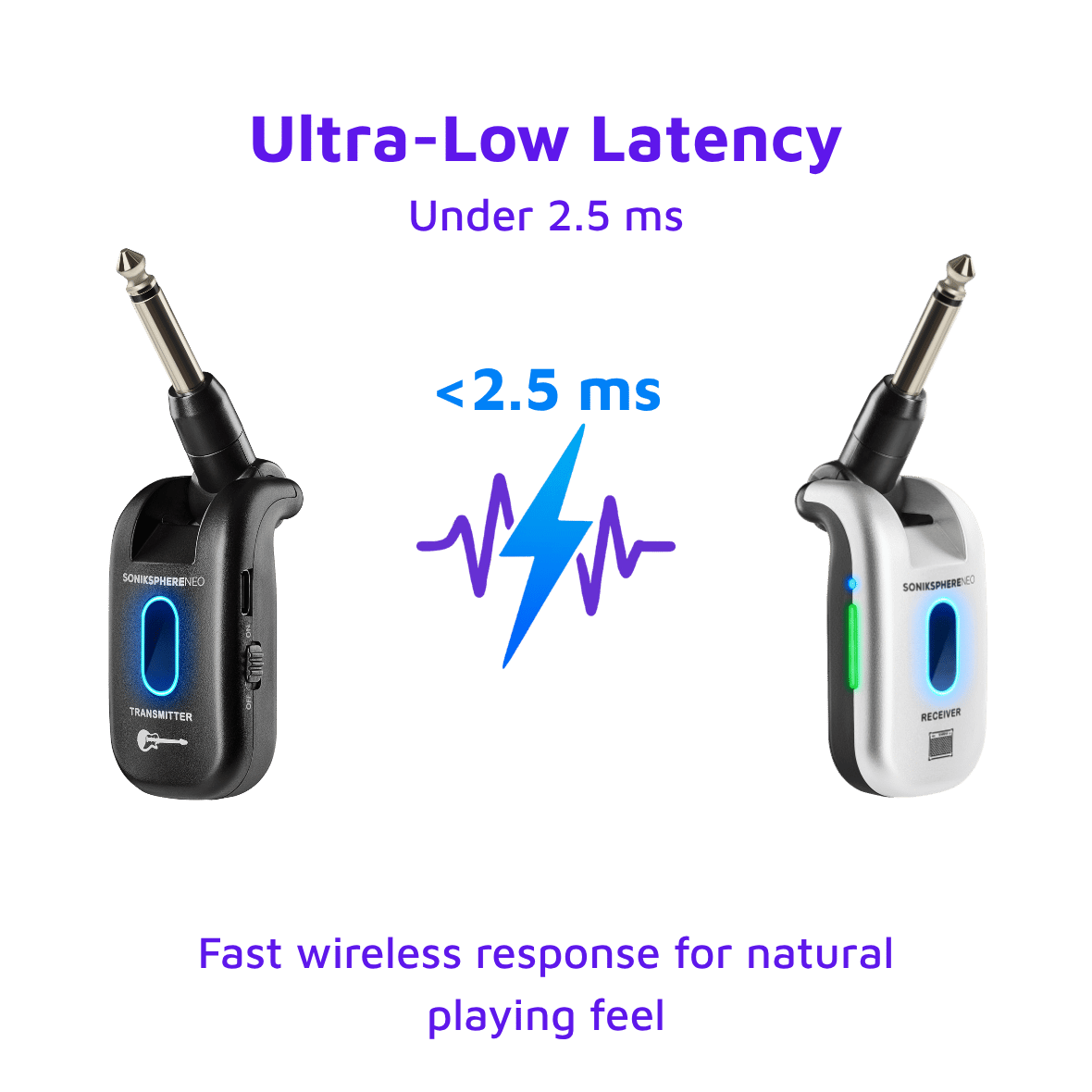

- Latency: less than 2.5ms
- Signal-to-noise ratio: over 110dB
- Total harmonic distortion: less than 0.02%
- FHSS interference mitigation
Range & Channels

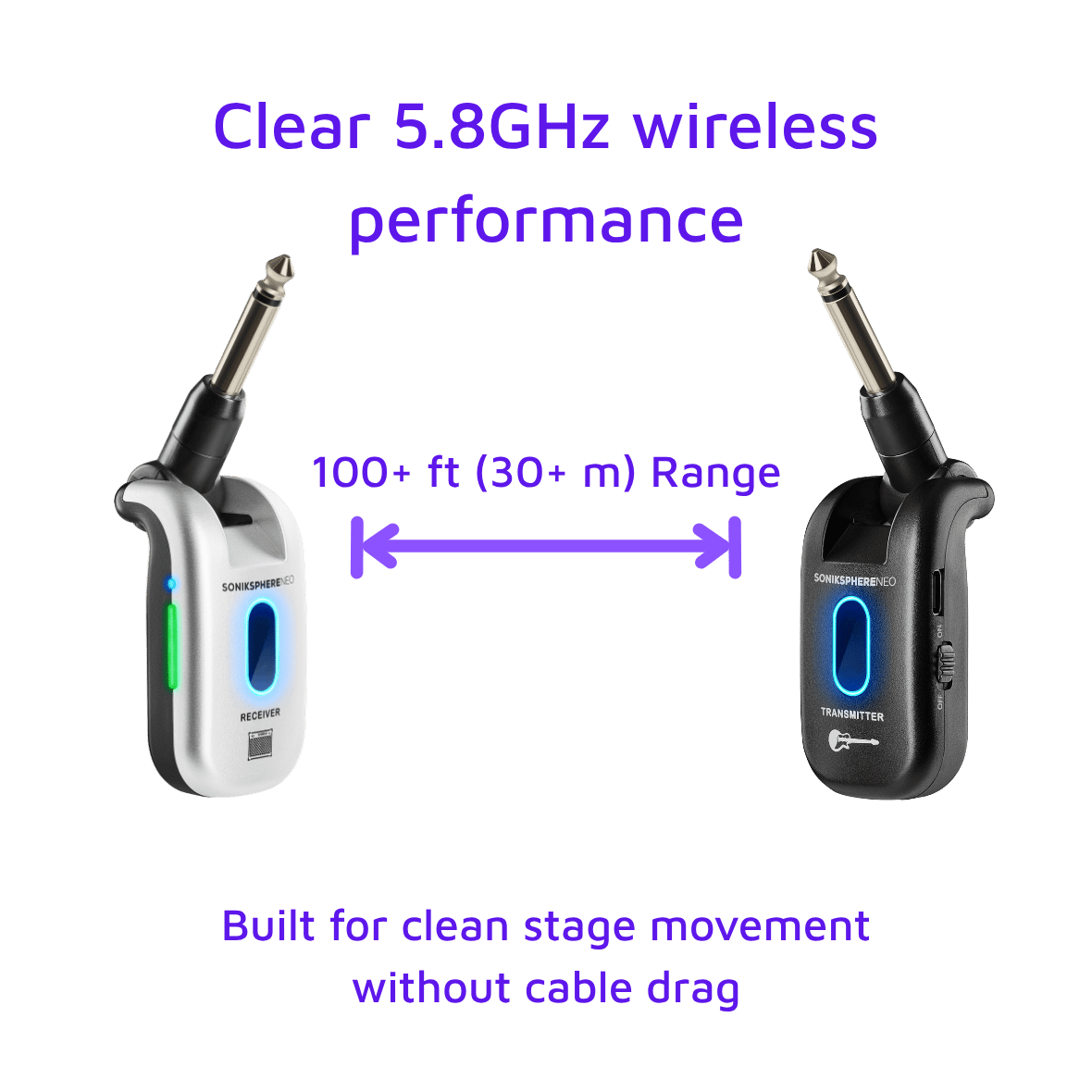

- Range: up to 100 ft / 30 m with clear line of sight
- 6 color-coded channel banks
- Channel colors: red, green, blue, yellow, purple, and cyan
- Channel selection is controlled from the transmitter
- The receiver follows the transmitter channel after pairing
- Up to 6 NEO pairs can be used on separate channels
Power & Charging
- Built-in 3.7V / 600mAh rechargeable lithium battery
- Battery life: over 10 hours of continuous use
- Charging time: approximately 2-3 hours
- USB-C charging ports on both units
- USB-A to dual USB-C charging cable included
- Use only a 5V / 1A, 5W maximum USB power source
- Avoid high-wattage fast chargers

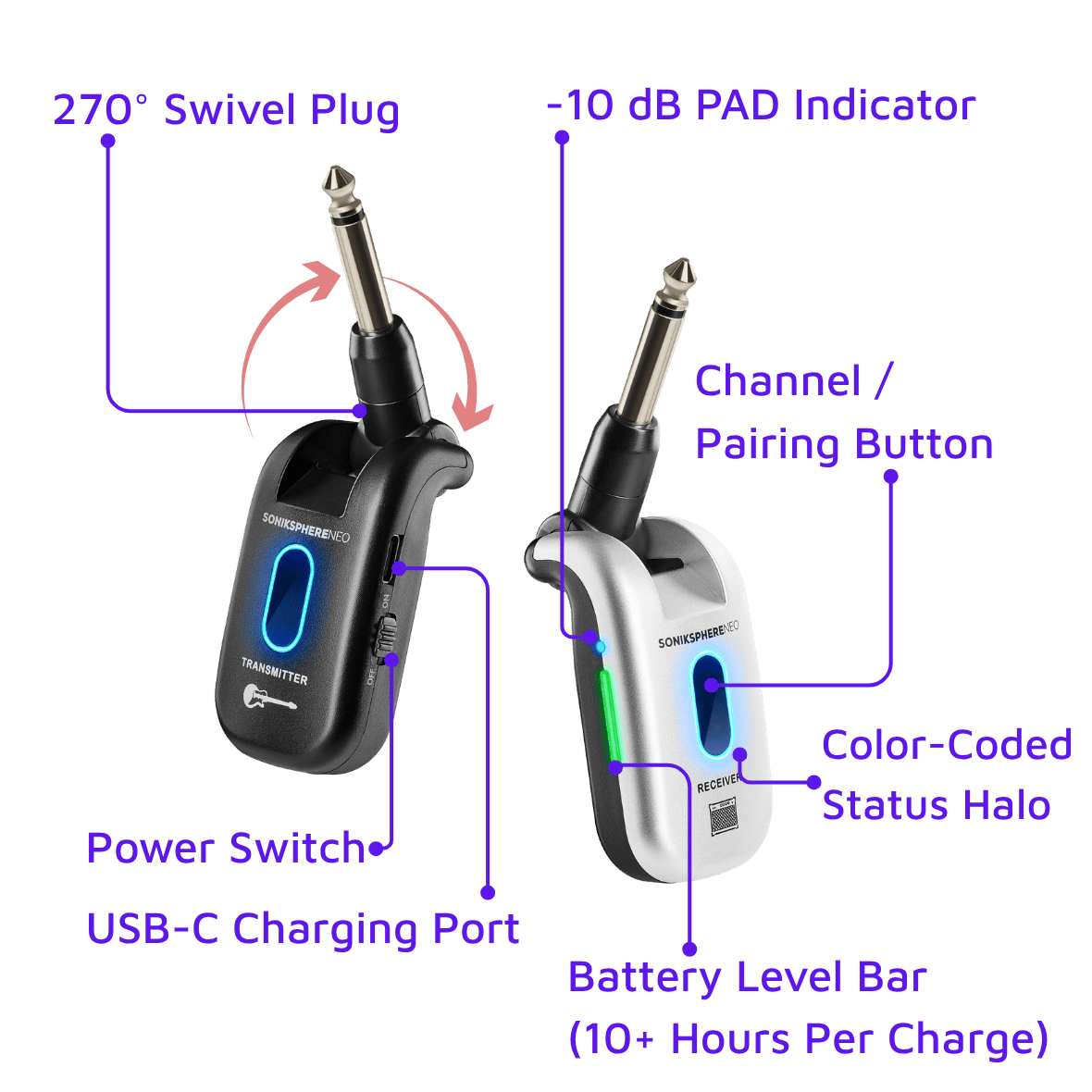

Controls & Indicators
- Action Oval button controls pairing, channels, and the PAD
- Built-in -10dB PAD controlled from the transmitter
- Dedicated PAD indicator light
- Visual battery bar on both transmitter and receiver

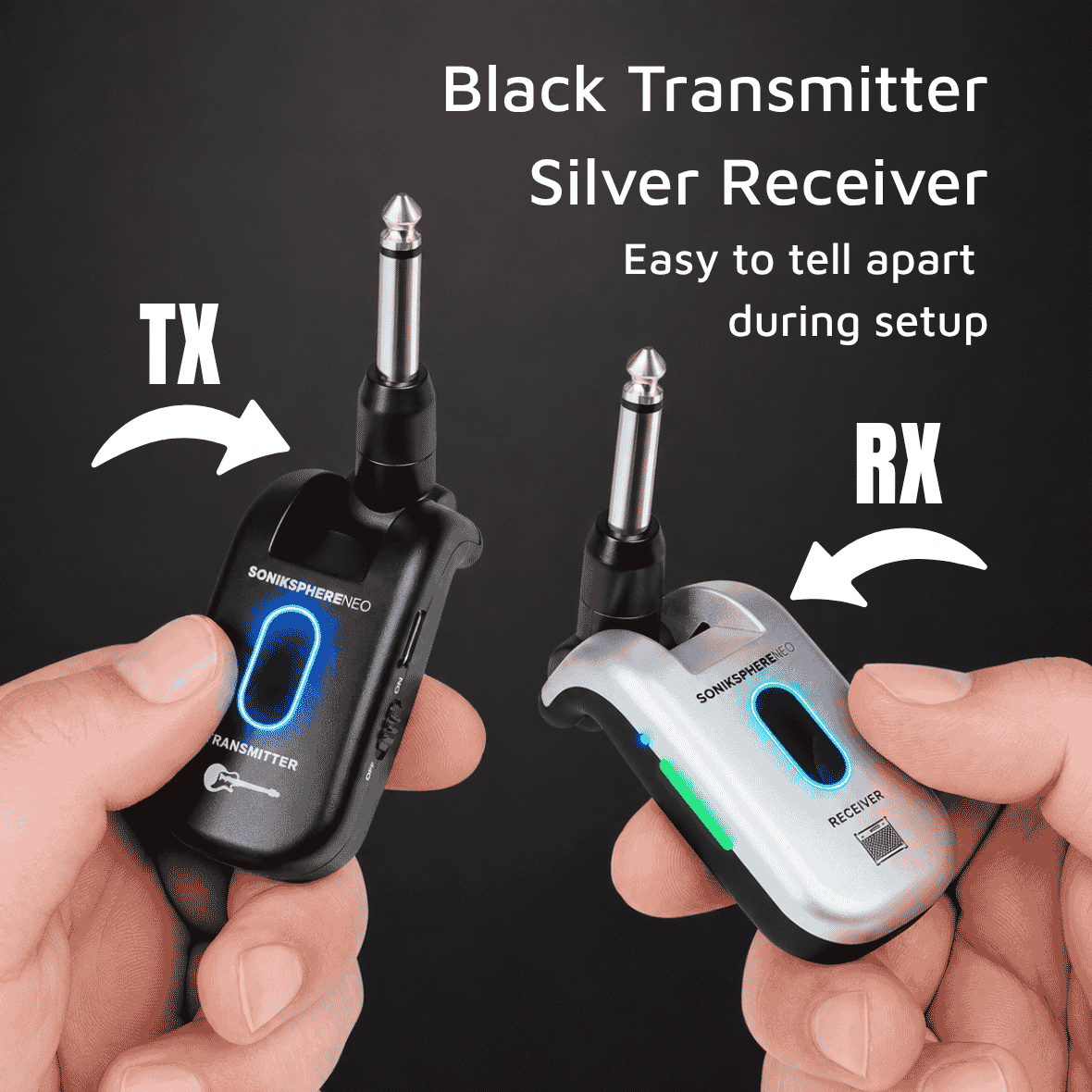

- Black transmitter and silver receiver for quicker identification
Connections & Fit
- Standard 1/4-inch mono TS instrument connection
- 270-degree swivel plug
- Designed for guitar, bass, pedalboard, amp, modeler, and instrument-input use
- Size of each unit: 2.7 x 1.4 x 1.2 in / 68 x 35 x 30 mm
- Durable ABS housing
Compatibility & Box
- Works with passive, active, piezo, and magnetic pickup systems
- One receiver pairs with one transmitter at a time
- Not for speaker-level outputs, stereo TRS outputs, microphones, or in-ear monitors
- Includes 1 black transmitter and 1 silver receiver
- Includes USB-A to dual USB-C charging cable
- Owner’s manual included
Will SonikSphere NEO work with my guitar, bass, amp, or pedalboard?
SonikSphere NEO works with guitars, basses, and other gear that use a standard 1/4-inch mono instrument connection. Plug the black transmitter into your instrument and the silver receiver into your amp, pedalboard, modeler, or audio interface instrument input.
Instruments
- Electric guitars
- Electric basses
- Acoustic-electric instruments
- Keyboards with a suitable 1/4-inch instrument-level output
- E-drums and similar instrument-level outputs
Pickups & Outputs
- Passive pickups
- Active pickups
- Piezo systems
- Magnetic pickups
- Use the -10dB PAD if a hotter signal clips or sounds overloaded
Receiver Connections
- Guitar or bass amp input
- Pedalboard input
- Amp modeler input
- Audio interface instrument input
- Other standard 1/4-inch instrument-level inputs
Jack Fit
- The 270-degree swivel plug fits most straight, side, and angled instrument jacks
- Check strap clearance when using an acoustic-electric endpin jack
- Deeply recessed or crowded jacks may need a short 1/4-inch TS extension cable
- Our Air Pocket transmitter holster keeps the transmitter safely away from awkward jacks
Do Not Use It With
- Speaker outputs
- Stereo TRS headphone outputs
- XLR microphones
- Bluetooth headphones
- In-ear monitoring systems
- Any connection that is not a standard instrument-level output or input
Using multiple systems? Up to 6 SonikSphere NEO pairs can operate on separate color-coded channels. Give each pair its own color, and remember that one receiver pairs with one transmitter at a time.

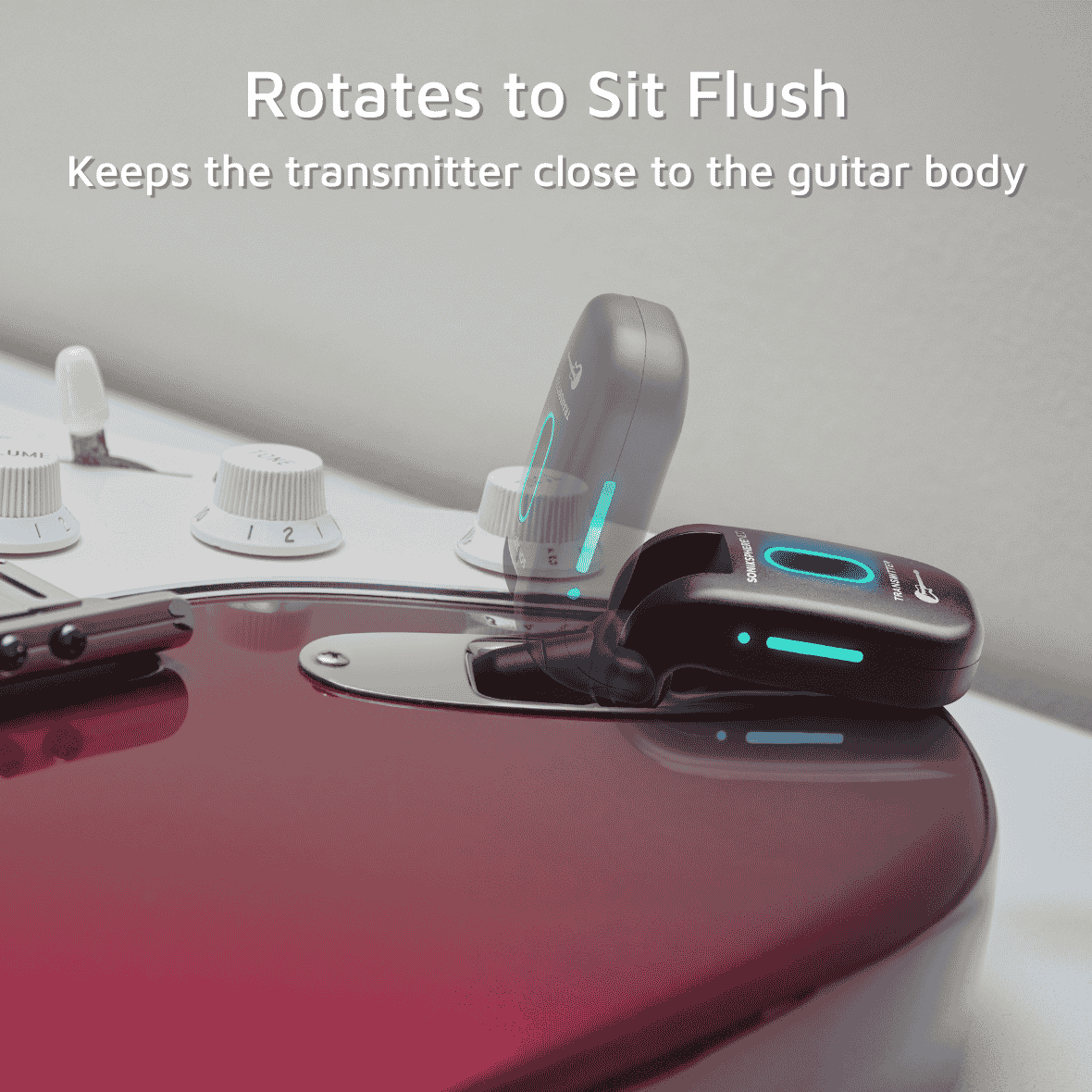

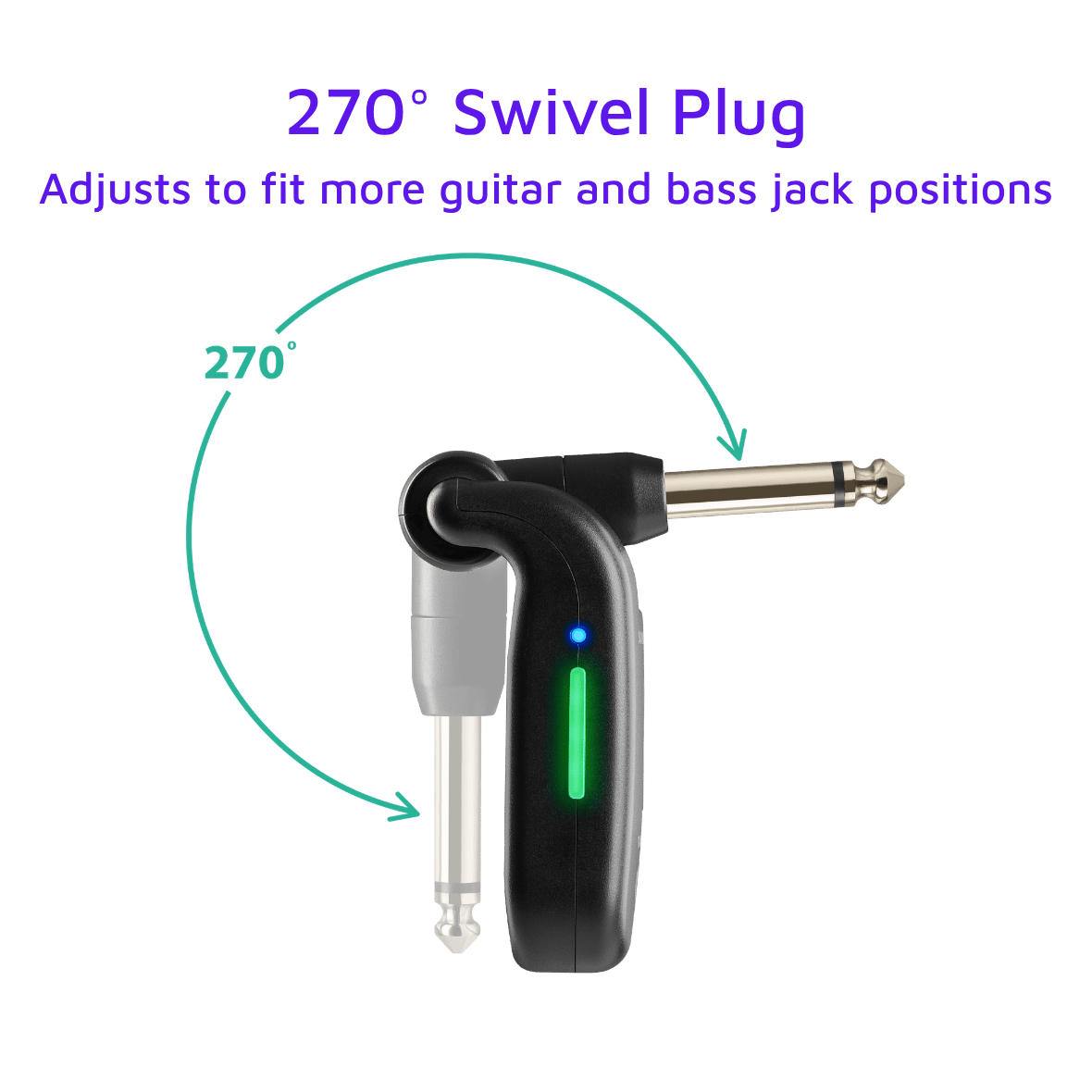

Will the 270-degree swivel plug fit my guitar or bass?
In most cases, yes. SonikSphere NEO’s 270-degree swivel plug rotates so the transmitter can sit close to the instrument body instead of sticking straight out.
This helps it fit Strat-style recessed jacks, side-mounted outputs, and many other awkward guitar and bass jack layouts. Deeply recessed or crowded jacks may still need a short 1/4-inch TS extension cable or the CFG Air Pocket transmitter holster.
How is SonikSphere NEO different from the original SonikSphere?
NEO keeps the original SonikSphere’s 5.8GHz wireless band, 24-bit/48kHz audio, 6 channels, and up to 100 ft of clear line-of-sight range. The upgrades focus on playing feel, battery life, hotter instruments, and easier stage control.
| Feature | Original SonikSphere | SonikSphere NEO |
|---|---|---|
| Battery life | Up to 8 hours | Over 10 hours |
| Latency | Under 4ms | Under 2.5ms |
| Hot signal control | No dedicated input PAD | Built-in -10dB PAD for active, piezo, and high-output instruments |
| Channel visibility | Basic channel indication | 6 clearly color-coded channels |
| Battery display | Basic battery status light | Visual battery bar on both units |
| TX/RX identification | Black transmitter and black receiver | Black transmitter and silver receiver |
Battery life
Latency
Hot signal control
Channel visibility
Battery display
TX/RX identification

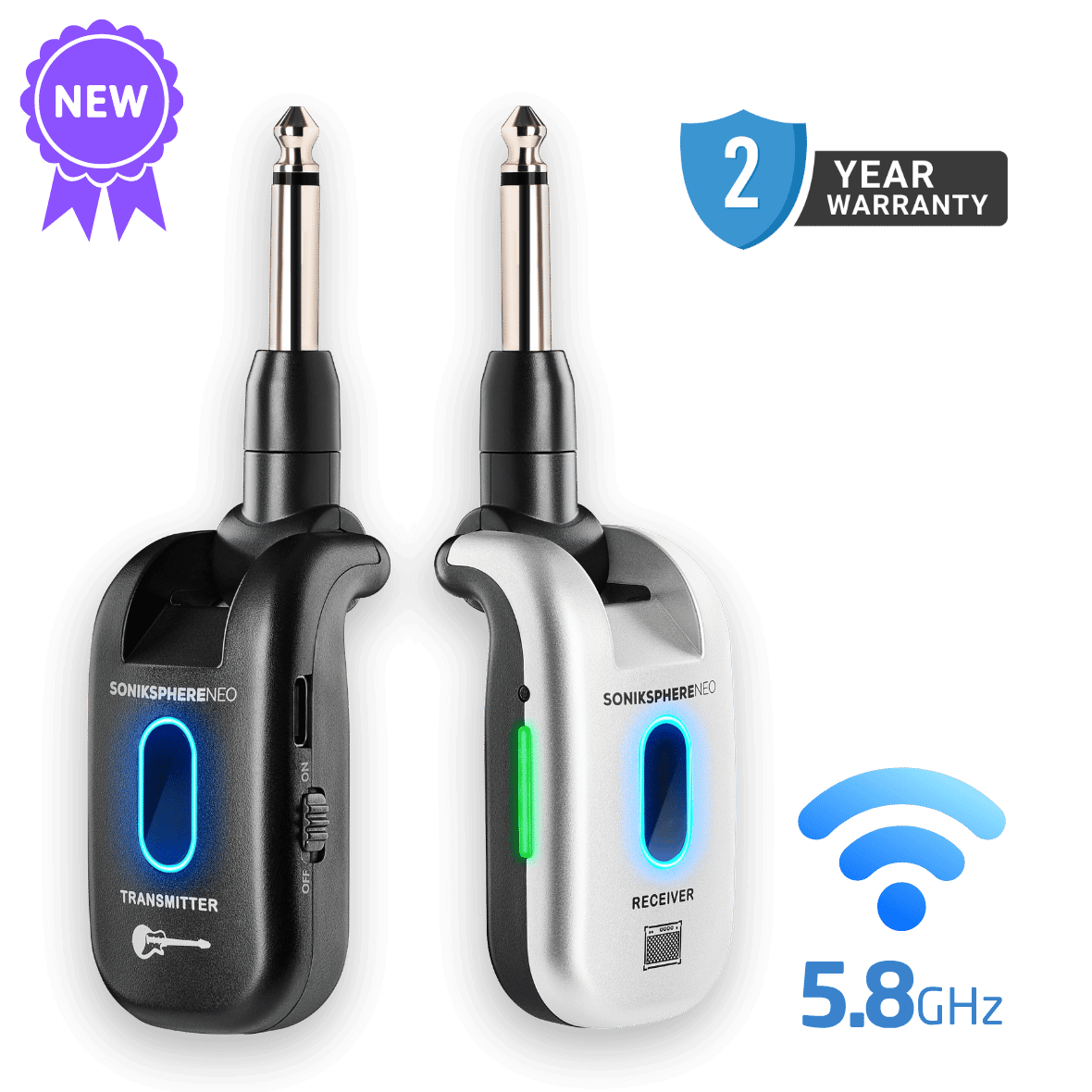

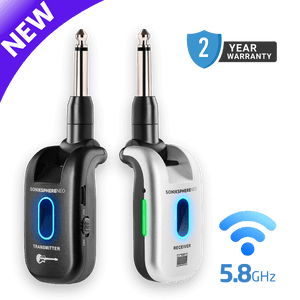

What comes with SonikSphere NEO?
Each SonikSphere NEO system includes everything needed to connect one instrument wirelessly to an amp, pedalboard, modeler, or audio interface instrument input.
- 1 black SonikSphere NEO transmitter
- 1 silver SonikSphere NEO receiver
- 1 USB-A to dual USB-C charging cable
- 1 owner’s manual
Download the SonikSphere NEO Owner’s Manual (PDF)
What charger should I use with SonikSphere NEO?
Use a standard 5V / 1A USB power source rated at no more than 5W. The included USB-A to dual USB-C cable charges the transmitter and receiver at the same time.
⚠️ Do not use high-wattage fast chargers. Chargers designed for laptops, tablets, or rapid phone charging may supply more power than the batteries are designed to accept and can cause permanent damage.
Which CFG wireless guitar system fits your setup?
SonikSphere NEO is the strongest fit for players who want CFG’s upgraded 5.8GHz system with over 10 hours of battery life, lower latency, clear channel and battery displays, and built-in control for hotter instruments.
| Feature | CF-80 | Original SonikSphere | SonikSphere NEO | UHF NEXUS |
|---|---|---|---|---|
| Best for | Simple, budget-friendly wireless playing | The original CFG 5.8GHz experience | Upgraded 5.8GHz performance, longer battery life, clearer controls, and hotter-instrument support | UHF operation, longer open-space range, and fast guitar swaps |
| Wireless band | 2.4GHz | 5.8GHz | 5.8GHz | UHF 657-663MHz |
| Audio | 16-bit/48kHz | 24-bit/48kHz | 24-bit/48kHz | 24-bit/48kHz |
| Latency | Under 4ms | Under 4ms | Under 2.5ms | Under 2ms |
| Battery life | Up to 8 hours | Up to 8 hours | Over 10 hours | Up to 6 hours |
| Open-space range | Up to 100 ft | Up to 100 ft | Up to 100 ft | Up to 165 ft |
| Channels | 4 banks | 6 channels | 6 color-coded channels | 7 color-coded channels |
| Active and piezo instruments | No dedicated PAD | No dedicated PAD | Built-in -10dB PAD | No dedicated PAD |
| Fast guitar swaps | New pairing may be required | New pairing may be required | One transmitter pairs with one receiver at a time | Yes. Multiple transmitters can be prepared for one receiver, with only one transmitter powered on at a time |
SonikSphere NEO
The upgraded 5.8GHz choice
UHF NEXUS
The UHF and fast-swap choice
Original SonikSphere
The original 5.8GHz choice
CF-80
The everyday value choice
SonikSphere NEO FAQ
Does SonikSphere NEO work with guitars and basses?
Yes. SonikSphere NEO works with electric guitars, electric basses, and acoustic-electric instruments that use a standard 1/4-inch mono instrument output.
Does SonikSphere NEO work with active pickups and piezo systems?
Yes. It works with passive, active, magnetic, and piezo pickup systems. Use the built-in -10dB PAD if an active, piezo, or high-output instrument sounds overloaded or digitally distorted.
When should I turn on the -10dB PAD?
Start with the PAD off. Turn it on if a hotter instrument signal clips, sounds harsh, or overloads the wireless input. The PAD lowers the transmitter input level by 10dB and does not act as a tone control.
Will SonikSphere NEO change my tone?
SonikSphere NEO is designed for cable-like tone, with 24-bit/48kHz digital audio and a 10Hz-22kHz frequency response. The -10dB PAD also helps preserve cleaner headroom when hotter instruments hit the input too hard.
Is there noticeable delay while playing?
SonikSphere NEO has less than 2.5ms latency, which is designed to feel fast and natural while playing guitar or bass.
How do the 6 color-coded channels work?
Use the Action Oval button on the transmitter to select red, green, blue, yellow, purple, or cyan. Once paired, the receiver follows the transmitter’s selected channel color.
Can I use more than one SonikSphere NEO system at the same time?
Yes. Up to 6 NEO pairs can be used on separate color-coded channels. Give each pair its own channel and keep a clear path between each transmitter and receiver.
What should I do if the transmitter and receiver stop connecting?
Re-pair the transmitter and receiver using the Action Oval button. The setup tutorial above shows the complete re-pairing process step by step.
Can one receiver be paired with multiple transmitters?
No. One SonikSphere NEO receiver pairs with one transmitter at a time. Re-pairing is required when changing to a different transmitter.

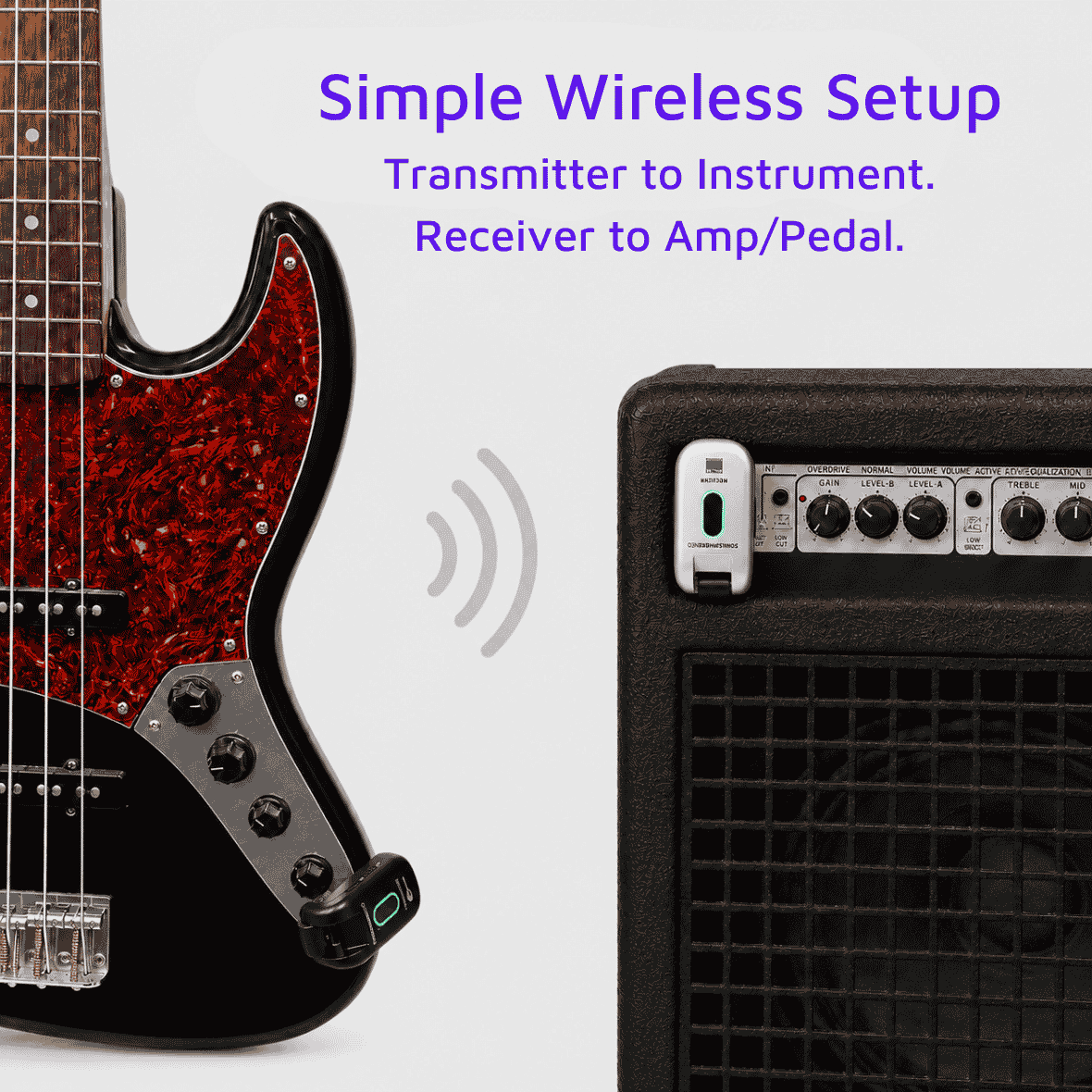

Where should I connect the receiver?
Connect the silver receiver to a guitar or bass amp input, pedalboard input, amp modeler input, or audio interface instrument input. Do not connect it to a speaker output, XLR microphone input, or stereo headphone output.
Will the swivel plug fit my instrument?
The 270-degree swivel plug fits most straight, side, and angled guitar and bass jacks. Deeply recessed, crowded, or acoustic endpin jacks may need a short 1/4-inch TS extension cable or the CFG Air Pocket transmitter holster.
What is the wireless range?
The range is up to 100 ft / 30 m with clear line of sight. For the strongest connection, avoid blocking the path between the transmitter and receiver with people, metal racks, or large stage equipment.
How long does the battery last?
SonikSphere NEO provides over 10 hours of continuous use per charge. Battery bars on both units show the remaining charge before and during use.
What charger should I use?
Use a standard 5V / 1A USB power source rated at no more than 5W. Do not use high-wattage laptop, tablet, or rapid phone chargers, as they may damage the batteries.
What comes in the box?
The box includes 1 black transmitter, 1 silver receiver, 1 USB-A to dual USB-C charging cable, and 1 owner’s manual.
What warranty does SonikSphere NEO include?
SonikSphere NEO includes CFG’s 2-year warranty.
Want cable-like 5.8GHz wireless with longer battery life and better control for hotter instruments?
SonikSphere NEO is CFG’s second-generation 5.8GHz wireless guitar and bass system, built for players who want clean 24-bit/48kHz audio, under 2.5ms latency, over 10 hours of battery life, and a built-in -10dB PAD for active, piezo, and high-output instruments.
It keeps the cable-like SonikSphere sound, then adds 6 color-coded channels, visual battery bars on both units, and black-transmitter/silver-receiver identification for quicker setup on stage. Plug the transmitter into your instrument, plug the receiver into your amp or pedalboard, choose your channel, and play.
Why choose SonikSphere NEO?
- 5.8GHz wireless: Runs outside the crowded 2.4GHz space used by Wi-Fi, Bluetooth, and plenty of everyday gear.
- Cable-like sound: 24-bit/48kHz digital audio with a wide 10Hz-22kHz frequency response.
- Built-in -10dB PAD: Helps prevent clipping from active, piezo, and high-output instruments.
- Fast playing feel: Under 2.5ms latency keeps the response tight and natural.
- Over 10 hours per charge: Built for long rehearsals, gigs, and practice sessions.
- Clear stage control: 6 color-coded channels, visual battery bars on both units, and easy black TX/silver RX identification.
Who should choose SonikSphere NEO?
SonikSphere NEO is a strong fit for guitarists and bassists who want cable-like 5.8GHz wireless sound, longer battery life, and better control over active, piezo, or high-output instruments.
It is made for gigs, jam sessions, rehearsals, worship stages, clubs, and other setups where cables get in the way, while also working well for home practice and recording. It gives you a simple instrument-to-amp or instrument-to-pedalboard connection without using the crowded 2.4GHz lane.
- Electric guitar and bass players: Built for standard 1/4-inch instrument outputs and inputs.
- Active and piezo instruments: The built-in -10dB PAD helps lower hotter input signals before they overload the wireless input.
- Long rehearsals and gigs: Over 10 hours of battery life gives you more breathing room between charges.
- Players who prefer 5.8GHz: Runs outside the crowded 2.4GHz space commonly used by Wi-Fi, Bluetooth, and other everyday gear.
- Multi-player setups: 6 color-coded channels help keep multiple NEO systems organized in the same room.
- Dark or busy stages: The black transmitter and silver receiver are easy to tell apart at a glance.
How does SonikSphere NEO sound compared to a guitar cable?
SonikSphere NEO is built to preserve the natural character of your guitar or bass, with a frequency response designed to stay remarkably close to a traditional instrument cable.
In plain English, you keep the familiar feel and tone of your instrument while removing the cable from the equation.
How do SonikSphere NEO’s channels and -10dB PAD work?
SonikSphere NEO keeps the controls simple: choose one of 6 color-coded channels on the transmitter, and use the -10dB PAD only when an active, piezo, or high-output instrument is hitting the wireless input too hard.
The receiver follows the transmitter’s channel color after pairing. Battery bars on both units show how much charge remains, while the PAD indicator light confirms when the input level has been reduced.
How do I switch wireless channels?
Use the Action Oval button on the transmitter to cycle through the 6 channel colors: red, green, blue, yellow, purple, and cyan.
The receiver follows the transmitter’s selected color after the pair is connected. When using multiple NEO systems in the same room, set each pair to a different channel color.
When should I turn on the -10dB PAD?
Turn on the -10dB PAD if an active, piezo, or high-output instrument sounds overloaded, harsh, or digitally distorted through the wireless system.
The PAD lowers the transmitter’s input level by 10dB before the signal is processed. It is not a tone control and it does not boost quiet instruments.
- Start with the PAD off: This is the normal setting for most passive guitars and basses.
- Turn the PAD on if the signal clips: This may help with active pickups, piezo systems, and other hotter outputs.
- Check the PAD indicator: The light confirms when the -10dB setting is active.
Need help setting up SonikSphere NEO?
These quick tutorials show how to switch channels, re-pair the transmitter and receiver, and use the -10dB PAD when your instrument’s signal is hitting too hard.
How to switch channels
Use this when you want to move your NEO system to another color-coded channel during setup or troubleshooting.
How to re-pair SonikSphere NEO
Use this if the transmitter and receiver are not connecting properly, or if you need to pair the system again.
How and when to use the -10dB PAD
See how to turn the PAD on and when it may help with active, piezo, or high-output instruments that sound overloaded.
What are the SonikSphere NEO technical specifications?
Wireless & Audio
- Wireless band: 5.725GHz-5.825GHz
- 5.8GHz ISM band
- Audio quality: 24-bit/48kHz digital audio
- Frequency response: 10Hz-22kHz, ±1dB
- Latency: less than 2.5ms
- Signal-to-noise ratio: over 110dB
- Total harmonic distortion: less than 0.02%
- FHSS interference mitigation
Range & Channels
- Range: up to 100 ft / 30 m with clear line of sight
- 6 color-coded channel banks
- Channel colors: red, green, blue, yellow, purple, and cyan
- Channel selection is controlled from the transmitter
- The receiver follows the transmitter channel after pairing
- Up to 6 NEO pairs can be used on separate channels
Power & Charging
- Built-in 3.7V / 600mAh rechargeable lithium battery
- Battery life: over 10 hours of continuous use
- Charging time: approximately 2-3 hours
- USB-C charging ports on both units
- USB-A to dual USB-C charging cable included
- Use only a 5V / 1A, 5W maximum USB power source
- Avoid high-wattage fast chargers
Controls & Indicators
- Action Oval button controls pairing, channels, and the PAD
- Built-in -10dB PAD controlled from the transmitter
- Dedicated PAD indicator light
- Visual battery bar on both transmitter and receiver
- Black transmitter and silver receiver for quicker identification
Connections & Fit
- Standard 1/4-inch mono TS instrument connection
- 270-degree swivel plug
- Designed for guitar, bass, pedalboard, amp, modeler, and instrument-input use
- Size of each unit: 2.7 x 1.4 x 1.2 in / 68 x 35 x 30 mm
- Durable ABS housing
Compatibility & Box
- Works with passive, active, piezo, and magnetic pickup systems
- One receiver pairs with one transmitter at a time
- Not for speaker-level outputs, stereo TRS outputs, microphones, or in-ear monitors
- Includes 1 black transmitter and 1 silver receiver
- Includes USB-A to dual USB-C charging cable
- Owner’s manual included
Will SonikSphere NEO work with my guitar, bass, amp, or pedalboard?
SonikSphere NEO works with guitars, basses, and other gear that use a standard 1/4-inch mono instrument connection. Plug the black transmitter into your instrument and the silver receiver into your amp, pedalboard, modeler, or audio interface instrument input.
Instruments
- Electric guitars
- Electric basses
- Acoustic-electric instruments
- Keyboards with a suitable 1/4-inch instrument-level output
- E-drums and similar instrument-level outputs
Pickups & Outputs
- Passive pickups
- Active pickups
- Piezo systems
- Magnetic pickups
- Use the -10dB PAD if a hotter signal clips or sounds overloaded
Receiver Connections
- Guitar or bass amp input
- Pedalboard input
- Amp modeler input
- Audio interface instrument input
- Other standard 1/4-inch instrument-level inputs
Jack Fit
- The 270-degree swivel plug fits most straight, side, and angled instrument jacks
- Check strap clearance when using an acoustic-electric endpin jack
- Deeply recessed or crowded jacks may need a short 1/4-inch TS extension cable
- Our Air Pocket transmitter holster keeps the transmitter safely away from awkward jacks
Do Not Use It With
- Speaker outputs
- Stereo TRS headphone outputs
- XLR microphones
- Bluetooth headphones
- In-ear monitoring systems
- Any connection that is not a standard instrument-level output or input
Using multiple systems? Up to 6 SonikSphere NEO pairs can operate on separate color-coded channels. Give each pair its own color, and remember that one receiver pairs with one transmitter at a time.
Will the 270-degree swivel plug fit my guitar or bass?
In most cases, yes. SonikSphere NEO’s 270-degree swivel plug rotates so the transmitter can sit close to the instrument body instead of sticking straight out.
This helps it fit Strat-style recessed jacks, side-mounted outputs, and many other awkward guitar and bass jack layouts. Deeply recessed or crowded jacks may still need a short 1/4-inch TS extension cable or the CFG Air Pocket transmitter holster.
How is SonikSphere NEO different from the original SonikSphere?
NEO keeps the original SonikSphere’s 5.8GHz wireless band, 24-bit/48kHz audio, 6 channels, and up to 100 ft of clear line-of-sight range. The upgrades focus on playing feel, battery life, hotter instruments, and easier stage control.
| Feature | Original SonikSphere | SonikSphere NEO |
|---|---|---|
| Battery life | Up to 8 hours | Over 10 hours |
| Latency | Under 4ms | Under 2.5ms |
| Hot signal control | No dedicated input PAD | Built-in -10dB PAD for active, piezo, and high-output instruments |
| Channel visibility | Basic channel indication | 6 clearly color-coded channels |
| Battery display | Basic battery status light | Visual battery bar on both units |
| TX/RX identification | Black transmitter and black receiver | Black transmitter and silver receiver |
Battery life
Latency
Hot signal control
Channel visibility
Battery display
TX/RX identification
What comes with SonikSphere NEO?
Each SonikSphere NEO system includes everything needed to connect one instrument wirelessly to an amp, pedalboard, modeler, or audio interface instrument input.
- 1 black SonikSphere NEO transmitter
- 1 silver SonikSphere NEO receiver
- 1 USB-A to dual USB-C charging cable
- 1 owner’s manual
Download the SonikSphere NEO Owner’s Manual (PDF)
What charger should I use with SonikSphere NEO?
Use a standard 5V / 1A USB power source rated at no more than 5W. The included USB-A to dual USB-C cable charges the transmitter and receiver at the same time.
⚠️ Do not use high-wattage fast chargers. Chargers designed for laptops, tablets, or rapid phone charging may supply more power than the batteries are designed to accept and can cause permanent damage.
Which CFG wireless guitar system fits your setup?
SonikSphere NEO is the strongest fit for players who want CFG’s upgraded 5.8GHz system with over 10 hours of battery life, lower latency, clear channel and battery displays, and built-in control for hotter instruments.
| Feature | CF-80 | Original SonikSphere | SonikSphere NEO | UHF NEXUS |
|---|---|---|---|---|
| Best for | Simple, budget-friendly wireless playing | The original CFG 5.8GHz experience | Upgraded 5.8GHz performance, longer battery life, clearer controls, and hotter-instrument support | UHF operation, longer open-space range, and fast guitar swaps |
| Wireless band | 2.4GHz | 5.8GHz | 5.8GHz | UHF 657-663MHz |
| Audio | 16-bit/48kHz | 24-bit/48kHz | 24-bit/48kHz | 24-bit/48kHz |
| Latency | Under 4ms | Under 4ms | Under 2.5ms | Under 2ms |
| Battery life | Up to 8 hours | Up to 8 hours | Over 10 hours | Up to 6 hours |
| Open-space range | Up to 100 ft | Up to 100 ft | Up to 100 ft | Up to 165 ft |
| Channels | 4 banks | 6 channels | 6 color-coded channels | 7 color-coded channels |
| Active and piezo instruments | No dedicated PAD | No dedicated PAD | Built-in -10dB PAD | No dedicated PAD |
| Fast guitar swaps | New pairing may be required | New pairing may be required | One transmitter pairs with one receiver at a time | Yes. Multiple transmitters can be prepared for one receiver, with only one transmitter powered on at a time |
SonikSphere NEO
The upgraded 5.8GHz choice
UHF NEXUS
The UHF and fast-swap choice
Original SonikSphere
The original 5.8GHz choice
CF-80
The everyday value choice
SonikSphere NEO FAQ
Does SonikSphere NEO work with guitars and basses?
Yes. SonikSphere NEO works with electric guitars, electric basses, and acoustic-electric instruments that use a standard 1/4-inch mono instrument output.
Does SonikSphere NEO work with active pickups and piezo systems?
Yes. It works with passive, active, magnetic, and piezo pickup systems. Use the built-in -10dB PAD if an active, piezo, or high-output instrument sounds overloaded or digitally distorted.
When should I turn on the -10dB PAD?
Start with the PAD off. Turn it on if a hotter instrument signal clips, sounds harsh, or overloads the wireless input. The PAD lowers the transmitter input level by 10dB and does not act as a tone control.
Will SonikSphere NEO change my tone?
SonikSphere NEO is designed for cable-like tone, with 24-bit/48kHz digital audio and a 10Hz-22kHz frequency response. The -10dB PAD also helps preserve cleaner headroom when hotter instruments hit the input too hard.
Is there noticeable delay while playing?
SonikSphere NEO has less than 2.5ms latency, which is designed to feel fast and natural while playing guitar or bass.
How do the 6 color-coded channels work?
Use the Action Oval button on the transmitter to select red, green, blue, yellow, purple, or cyan. Once paired, the receiver follows the transmitter’s selected channel color.
Can I use more than one SonikSphere NEO system at the same time?
Yes. Up to 6 NEO pairs can be used on separate color-coded channels. Give each pair its own channel and keep a clear path between each transmitter and receiver.
What should I do if the transmitter and receiver stop connecting?
Re-pair the transmitter and receiver using the Action Oval button. The setup tutorial above shows the complete re-pairing process step by step.
Can one receiver be paired with multiple transmitters?
No. One SonikSphere NEO receiver pairs with one transmitter at a time. Re-pairing is required when changing to a different transmitter.
Where should I connect the receiver?
Connect the silver receiver to a guitar or bass amp input, pedalboard input, amp modeler input, or audio interface instrument input. Do not connect it to a speaker output, XLR microphone input, or stereo headphone output.
Will the swivel plug fit my instrument?
The 270-degree swivel plug fits most straight, side, and angled guitar and bass jacks. Deeply recessed, crowded, or acoustic endpin jacks may need a short 1/4-inch TS extension cable or the CFG Air Pocket transmitter holster.
What is the wireless range?
The range is up to 100 ft / 30 m with clear line of sight. For the strongest connection, avoid blocking the path between the transmitter and receiver with people, metal racks, or large stage equipment.
How long does the battery last?
SonikSphere NEO provides over 10 hours of continuous use per charge. Battery bars on both units show the remaining charge before and during use.
What charger should I use?
Use a standard 5V / 1A USB power source rated at no more than 5W. Do not use high-wattage laptop, tablet, or rapid phone chargers, as they may damage the batteries.
What comes in the box?
The box includes 1 black transmitter, 1 silver receiver, 1 USB-A to dual USB-C charging cable, and 1 owner’s manual.
What warranty does SonikSphere NEO include?
SonikSphere NEO includes CFG’s 2-year warranty.
Recommended for you
People who bought this product also liked:
